Airflow and Microclimate Simulations for Rhino & Grasshopper

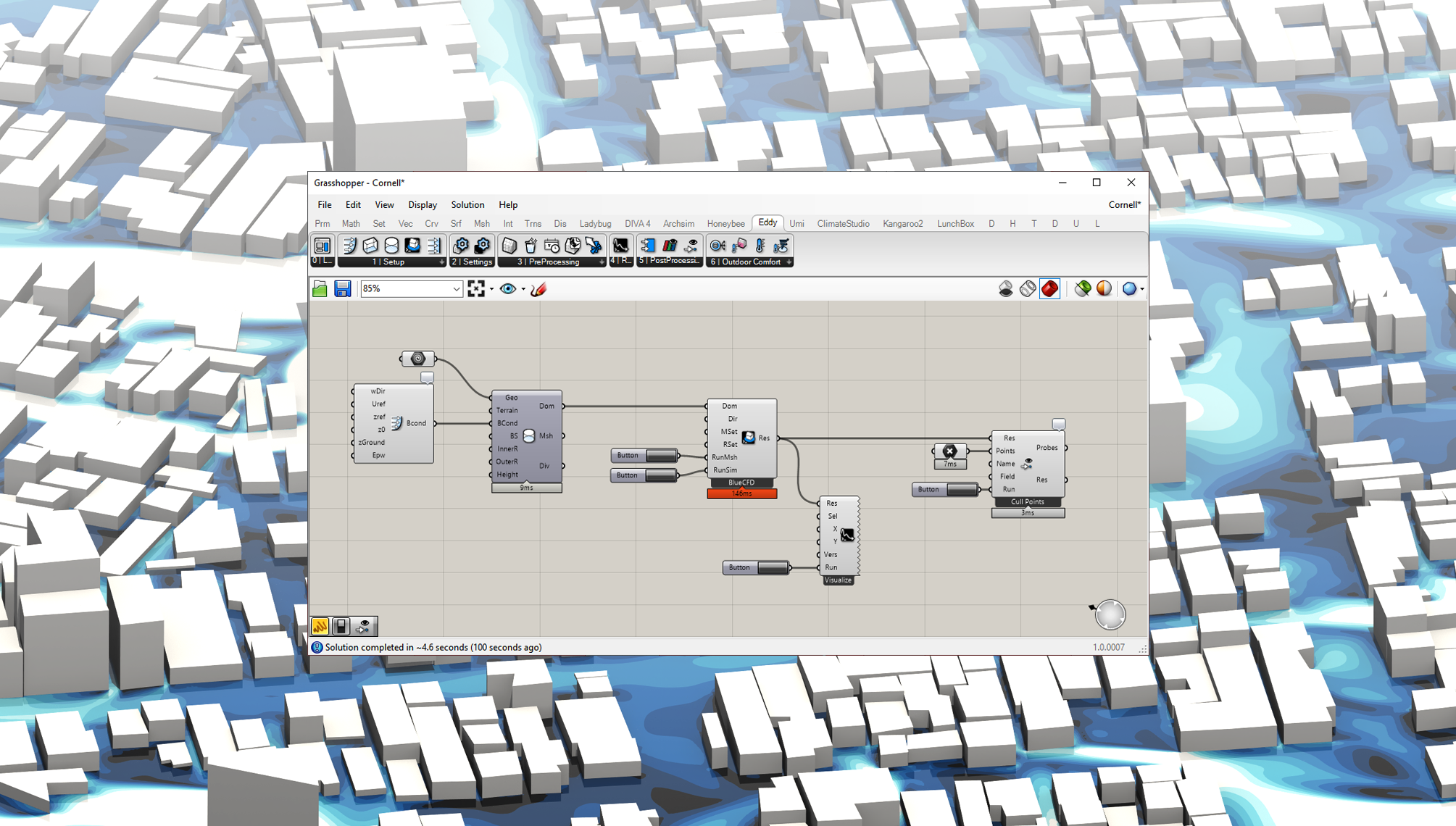

Eddy3D Example Canvas

Latest stable release and pre-release builds are listed on the download page.


What you can simulate

Each card opens a ready-to-run Grasshopper template in the template gallery; the same templates load from the Templates component inside Grasshopper.

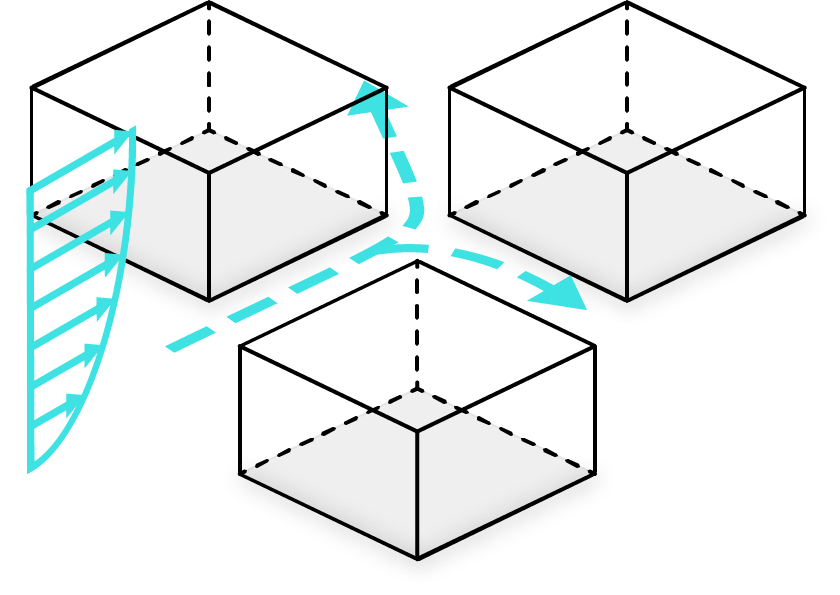

  • Diagram: wind profile around three buildings

    Wind around buildings

    Steady RANS in OpenFOAM: wind speed and pedestrian comfort around buildings, trees and terrain.

  • Diagram: thermal comfort over a site

    Outdoor thermal comfort

    UTCI from a fully coupled microclimate simulation with urbanMicroclimateFoam.

  • Result: annual solar irradiation over Hong Kong buildings

    Sun and solar radiation

    Annual irradiation on ground and facades, sun hours and BRE sunlight checks.

  • Result: surface temperatures around Manhattan buildings

    Surface and radiant temperature

    Surface temperatures of ground and walls, the input to mean radiant temperature.

  • Result: live wind streaks around Zurich buildings

    Live wind tunnel

    GPU lattice-Boltzmann wind that updates while you move the geometry.

  • Result: predicted wind comfort around a city

    Wind comfort without CFD

    Year-round pedestrian wind comfort classes from a trained model, in seconds.

  • Result: road noise levels around New York buildings

    Road traffic noise

    CNOSSOS-EU Lden on the ground and on every facade storey.

  • Result: ponding depth over an Atlanta site

    Stormwater

    Where water ponds on a graded site, and which way it runs.
